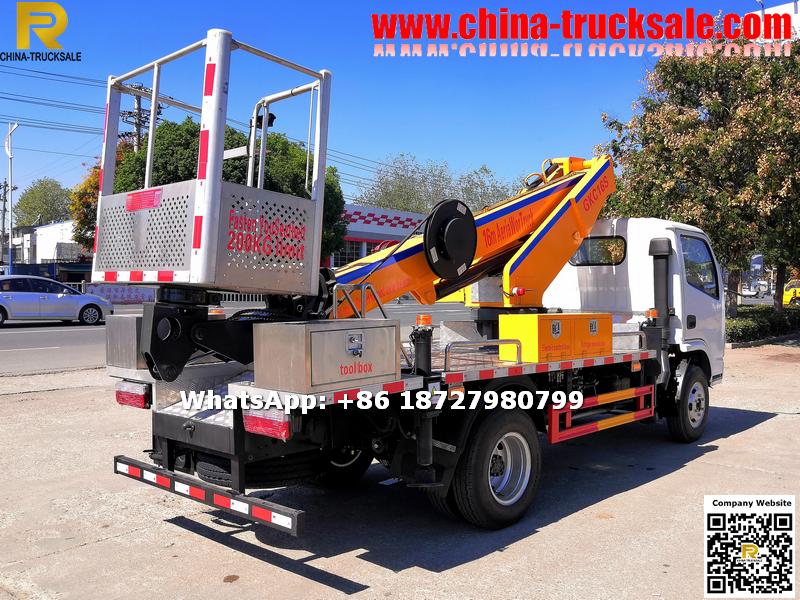

Exported to Angola 15M 16M Hydraulic aerial cage truck

Description

★★★★★FunctionAnd Introduction:

Exported to Angola 15M 16M Hydraulic aerial cage truck (also called 14M 15M aerial platform truck, 16M Telescopic boom aerial platform truck, Hydraulic aerial cage truck, 18M aerial platform truck, 20M aerial bucket truck, 24M aerial platform truck, 20M 22M aerial work platform truck, aerial bucket truck, high-altitude operation truck, overhead working truck, Man Lifter truck, truck mounted aerial work platform , knuckle boom aerial platform truck,Telescoping boom aerial platform, Aerial working platfrom truck, aerial lift, hydraulic beam lifter, hydraulic aerial platform vehicle, aerial boom lift, sky lift truck,etc).mainly used for the street lights maintenance, high-rise building maintenance, cleaning, maintenance, also used for elevator installation, ship repairing and cliff homework, etc, is essential to the construction machinery.

★★★★★★★★★★aerial platform truck can be divided into many types:
1. According to boom type,there are telescopic boom aerial platform truck and folding boom aerial platform truck.
2. According to working height ,there are 12m ,14m,16m,18m,20m, 22m, 24m, 26m, 28m,32m, 36m aerial work work platform truck.
★★★★★Product Advantage:
1. Good chassis ensure best driving performance
2. Famous engine ,high quality ,stable performance,super powerful
3. Rational structure ,full computer control, operation the remote control ,lifting stable,more safe
4. 200-400kg platform load capacity, Optional carton steel, stainless steel and fiberglass material
5. 8-36M working height is avaliable
6. Professional customized service

★★★★★Product Parameter:

Exported to Angola 15M 16M Hydraulic aerial cage truck ( aerial platform truck 14m, 15m, 16m,18m, 20m, 22m, 24m, 26m, 28m)
Vehicle name		Aerial working truck		Chassis：				DFAC
Outline size(L×W×H) (mm)		600020003100		color：				optional
Rated load(kg)		/		Empty mass(Kg)：				4950
Total weight (kg)		7300		Emission standard				Euro 2
Engine Information
Power		90HP		type		Diesel engine
Power		115HP (Optional)		type		Diesel engine
Chassis Information
Wheelbase(mm)：		3300			Axle load(kg) F/R	2190/4650
Tire		7.00-16			Max speed (km/h)：	95
Front suspension(mm)		1032			Rear suspension(mm)	2048
Front track(mm)		1506			Rear track(mm)	1466
Approach angel(°)		19			Departure angle(°)	13
Steering		Power Steering			Brake	Air brake
Cabin		Straight head ,single row ,2 people
Special function
Max. working height(m)	16M (Optional Aerial platform working height 14m, 15m, 16m,18m, 20m, 22m, 24m, 26m, 28m )		Turning angle°(°)				360°
Bucket capacity(kg)	200kg		Bucket rotate angle				360°
Configuration	1. The control system is set in the upper and lower end of the truck, electric and manual double control system, with remote control. 2.Hydraulic lifting system: 360°rotation; Equipped with hydraulic legs ,Good stability, simultaneous or independent operation, suitable for a variety of conditions 3. The vehicle electric appliance adopts CAN control system , Self regulating balance , steady lifting, truck body more stable. 4. Equipped with Emergency power unit and cylinder locking function , more safe.
Trade terms
Deliver time		20 workdays
MOQ		1set
Package		waxing
