Recommended daily-China 8m³ Compactor garbage truck

date:2021-06-22

---------------------------------------------------------------

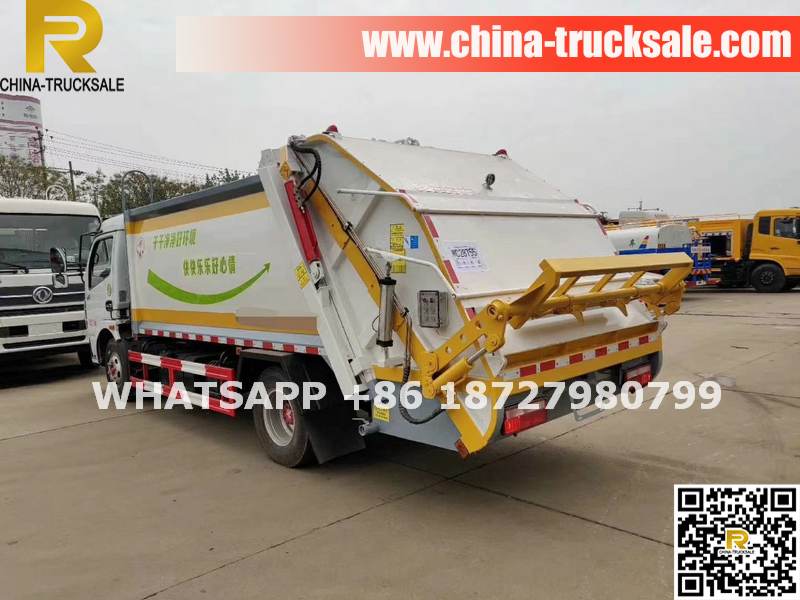

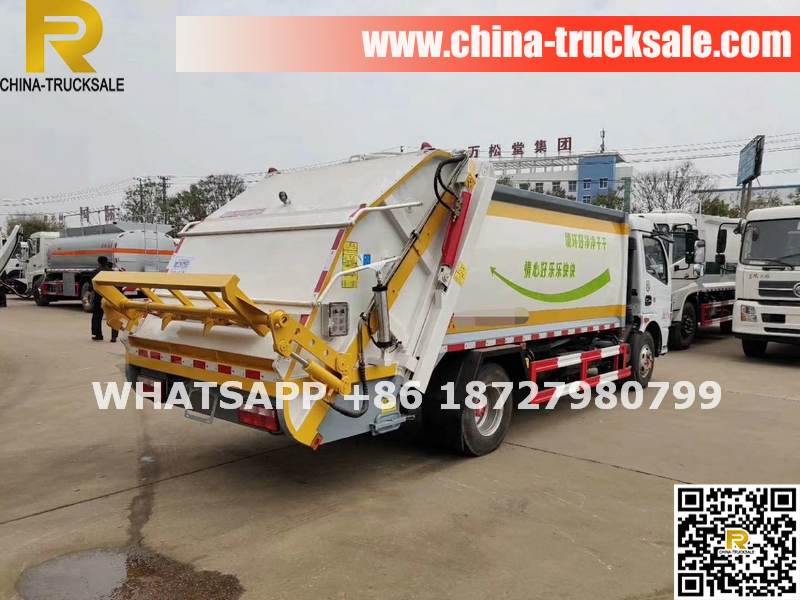

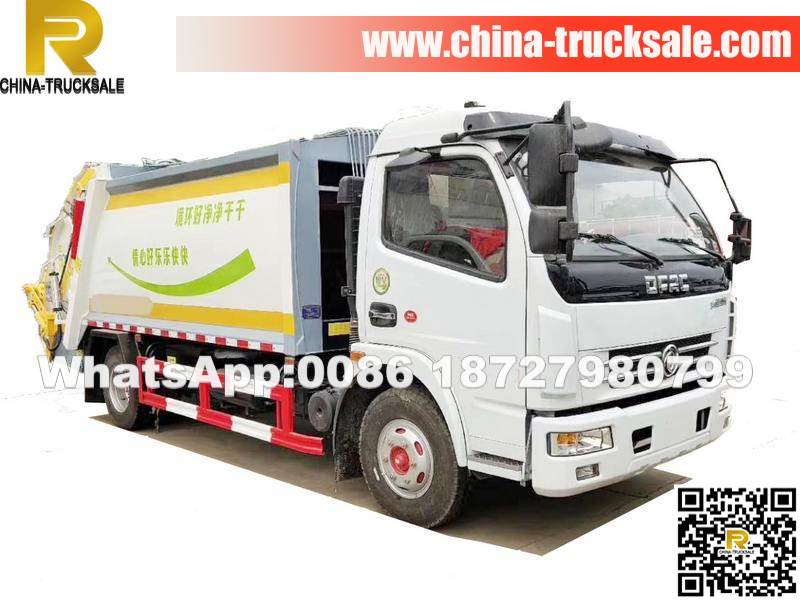

China 8m³ compactor garbage truck (also called rear loader garbage truck, rubbish truck, garbage collection truck, trash truck compressed waste truck,garbage compactor truck, compression garbage truck, waste compactor truck, bin wagon ,bin lorry ,waste collection vehicle,etc).Designed to collect and transport municipal solid waste.

★ Optional 240L(single box,Double barrel)Or 360L,660L,1100L lifting tilting mechanism,You can also choose other types of ground hopper loading mechanism.

★ There are two sets of manual and automatic control Method, the operator can control the cabin or in the middle of the back side Truck, very convenient and effective.Emergency braking device stops working button.

★ Garbage body with a frame design, elegant appearance, solid structure, Large effective capacity.

★ With a special collection box, sewage Direct access during compression cesspool that Effectively prevent secondary pollution caused by sewage leaks.

★ Hydraulic system design, realization truck garbage compression function, which is to improve the compression The compression ratio up to 1:3, the garbage can reach more than 600~800 kg/Compressed cubic meters.

------------------------------------------------

1. Optional color , LOGO ,Optional LHD/RHD truck , customized Production

2. Use DonFeng chassis, good quality and performance !

3. Equipped with CHAOCHAI 120HP / CUMMINS 140HP engine, super powerful !

4. Optional loading mechanism: Dustbin overturning mechanism , hopper flip, skip loader

5. electronic and Manual double operating system, Compression ratio: 3:1

------------------------------------------------

Basic Information
Vehicle name	Compactor Garbage truck		Chassis：	DONGFENG
Outline size(L×W×H) (mm)	760024002850		Cargo inline size(L×W×H)(mm)：	/
Rated load(kg)	5-8tons		Empty mass(Kg)：	6250
GVW(kg)	10495		Emission standard	Euro 3
Engine Information
Power/displacement(KW/ML)	140hp		Manufacture	CUMMINS Diesel engine
Power/displacement(KW/ML)	120hp		Manufacture	chaochai Diesel engine
Chassis Information
Wheelbase(mm)：	3800		Axle load(kg) F/R	3960/5535
Tire	8.25-16		Max speed (km/h)：	95
Front overhang(mm)	1180		Rear overhang(mm)	1715
Front track(mm)	1831		Rear track(mm)	1640
Approach angel(°)	22		Departure angle(°)	13
Steering	Power steering		Brake	Air brake
Cabin	Straight head 1 rows 2 doors 3 people
Special function
Bucket capacity（L）	8000	Operation			Manual and electric both available
Container material	Carbon steel	Compression ratio			3:1
Pressure plate material	High-tensile steel	Container thickness			5-6mm
Trade terms
Offerer	Mr. Darwen
Quote Lifetime	30days (we promise the quote is effective in the lifetime!)
Payment terms	40% by T/T in advance, 60% by T/T before delivery
Deliver time	10 workdays
MOQ	1
Package	Waxing before delivery
