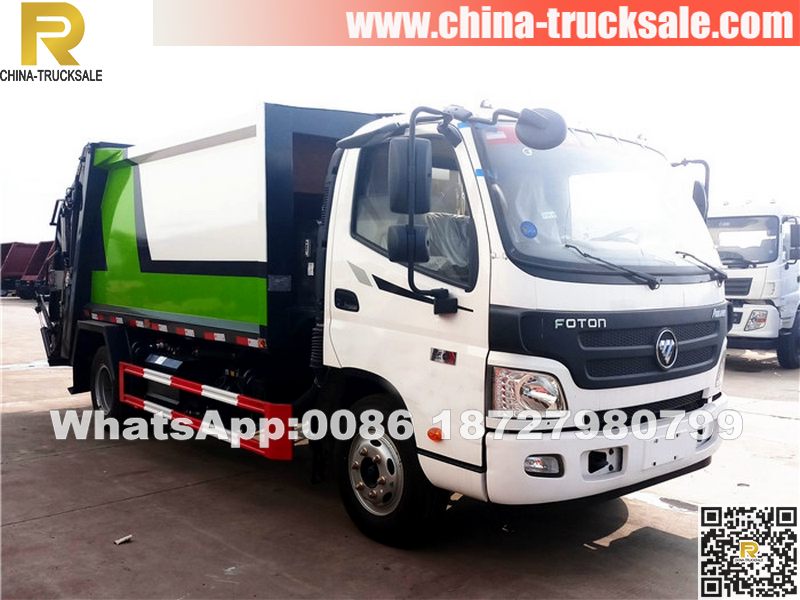

5tons 8tons FOTON AUMARK China garbage compactor truck

Description

★★★★★Function And Introduction:

8tons FOTON garbage collection truck (FOTON garbage compactor truck, 5tons compactor garbage truck, 8tons rubbish truck, China garbage truck, 8tons garbage truck, FOTON garbage collection truck, 8CBM FOTON garbage truck, 8tons trash truck, compressed waste truck, garbage compactor truck, compression garbage truck, waste compactor truck, compactor garbage truck, rubbish truck , bin wagon , bin lorry , garbage collection vehicle), it is widely used in daily garbage collection and transport ,with garbage compression, crushing function, greatly improve the efficiency of garbage collection and transportation.

★ Optional 240L(single box,Double barrel)Or 360L,660L,1100L lifting tilting mechanism,You can also choose other types of ground hopper loading mechanism.

★ There are two sets of manual and automatic control Method, the operator can control the cabin or in the middle of the back side Truck, very convenient and effective.Emergency braking device stops working button.

★ Garbage body with a frame design, elegant appearance, solid structure, Large effective capacity.

★ With a special collection box, sewage Direct access during compression cesspool that Effectively prevent secondary pollution caused by sewage leaks.

★ Hydraulic system design, realization truck garbage compression function, which is to improve the compression The compression ratio up to 1:3, the garbage can reach more than 600~800 kg/Compressed cubic meters.

★★★★★Our Service And Advantage :

※ We are professional special vehicle manufacturers , we can help our clients customize these trucks ,meeting the personalized requirements of different customers.

※ Types of garbage truck: garbage compactor truck , swing arm garbage truck,hook arm garbage truck ,dump garbage truck,sealed garbage truck,self-loading garbage truck,car detachable type garbage truck,etc

※ The warranty period of all our products is one year ,and provide the instruction manual ,operating video and spare parts for lifetime.

※ We are cooperation with almost all the chassis suppliers ,so that our customer can choose the most suitable truck,OptionalBrand: SINOTRUKHOWO,FOTON,FORLAND,ISUZU,NISSAN, JMC,JAC,DONGFENG, NORTH BENZ,C&C ,MERCEDES BENZ,FAW,FAC,IVECO,KAMA,SFC,etc

※ Use famous chassis ,through the ISO9001 ,CCC certification , quality assurance.

★★★★★Product Parameter:

PRODUCTS NAME: 5tons 8tons FOTON AUMARK China garbage compactor truck
Basic Information
Vehicle name	Garbage truck	Chassis：		FOTON
Outline size(L×W×H) (mm)	620022502700 765023502800	Cargo inline size(L×W×H)(mm)：		/
Rated load(kg)	5-8tons	Empty mass(Kg)：		5880
Total weight(kg)	8495/12495	Emission standard		Euro 3
Engine Information
Power	141HP	Manufacture		CUMMINS engine
Chassis Information
Wheelbase(mm)：	3360/3815	Axle load(kg) F/R		3885/8610
Tire	8.25-16	Max speed (km/h)：		95
Front overhang(mm)	1010	Rear overhang(mm)		2090
Front track(mm)	1780	Rear track(mm)		1650
Approach angel(°)	24	Departure angle(°)		13
Steering	Power steering	Brake		Oil brake
Cabin	Straight head 1 rows 2 doors ,allowable 3 persons
Special function
Bucket capacity	5CBM/8CBM		Filling work cycle time (s)		15-20
Garbage container material:	Anti-corrosion Carbon steel		Thickness		5-6mm
Pressure plate material	High-tensile steel		Discharge plate material		Anti-corrosion carbon steel
Compression Ratio	3:1		Operation		Manual and electric control both available
Trade terms
Payment terms	40% by T/T in advance, 60% by T/T before delivery
MOQ	1
Package	Waxing before delivery

★★★★★Product Display :

★★★★★ Garbage truck loading style Video:

★★★★★FAQ PARTS :
Q: How about Packaging?
A:In general , these trucks will be waxing before deliver to port ,and we can also package vehicles
according to your request.
Q: How about shipping ?
A:Big size trucks always shipping by RORO or bulk ship or flat bed container or open top container ,small type can shipping by container ,please contact us to get a shipping quotation.
Q:How about the warranty?
A: One year
Q: Do you have ISO certificate ?
A: Yes , we have ,please contact us to get our certifications.
Q: How about the delivery time ?
A: Most of our trucks are all have in stock ,we can delivery to you within 7 days ,if specially ordered ,we always need around 30 days for production.
Q: How about your product After-sales service system ?
A: Our main export country have accepted after-sales service, some of country used the third
department service.
Q: Do you accept Custom orders ? What's your MOQ order?
A: Yes,we do ,our MOQ is 1set.
Q: What's the payment terms ?
A: By T/T or L/C at sight.
Q: Which country do you have exported to ?
A: We have exported to many countries,such as Albania,Algeria,Angola,
Afghanistan, Congo,Cameroon,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,
Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Laos,Libya,Malaysia,Maldives,Mexico,
Morocco,Myanmar,Mongolia,New Zealand,Nigeria,Peru,Philippines,Qatar,Saudi Arabia,
Singapore,Sudan,South Sudan,Tanzania,Thailand,Togo, Tunisia,Venezuela,Zambia etc.
