5M3 ISUZU waste compactor truck for sale

Description

★★★★★FunctionAnd Introduction:

5M3 ISUZU waste compactor truck for sale ( waste compactor truck, ISUZU Garbage truck, 5M3 compactor garbage truck, garbage collector truck, compressed Garbage truck, 5 tons garbage compactor truck, compression garbage truck, compactor garbage truck, rubbish truck, bin lorry, waste collection vehicle ) widely used in daily rubbish transport ,and can be loaded garbage compression, crushing, its density, shrinkage, greatly improve the efficiency of garbage collection and transportation.

★ Optional 240L(single box,Double barrel)Or 360L,660L,1100L lifting tilting mechanism,You can also choose other types of ground hopper loading mechanism.

★ There are two sets of manual and automatic control Method, the operator can control the cabin or in the middle of the back side Truck, very convenient and effective.Emergency braking device stops working button.

★ Garbage body with a frame design, elegant appearance, solid structure, Large effective capacity.

★ With a special collection box, sewage Direct access during compression cesspool that Effectively prevent secondary pollution caused by sewage leaks.

★ Hydraulic system design, realization truck garbage compression function, which is to improve the compression The compression ratio up to 1:3, the garbage can reach more than 600~800 kg/Compressed cubic meters.

★★★★★Our Service And Advantage :

※ We are professional special vehicle manufacturers , we can help our clients customize these trucks ,meeting the personalized requirements of different customers.

※ Types of garbage truck: garbage compactor truck , swing arm garbage truck,hook arm garbage truck ,dump garbage truck,sealed garbage truck,self-loading garbage truck,car detachable type garbage truck,etc

※ The warranty period of all our products is one year ,and provide the instruction manual ,operating video and spare parts for lifetime.

※ We are cooperation with almost all the chassis suppliers ,so that our customer can choose the most suitable truck,OptionalBrand: SINOTRUKHOWO,FOTON,FORLAND,ISUZU,NISSAN, JMC,JAC,DONGFENG, NORTH BENZ,C&C ,MERCEDES BENZ,FAW,FAC,IVECO,KAMA,SFC,etc

※ Use famous chassis ,through the ISO9001 ,CCC certification , quality assurance.

★★★★★Product Parameter:

5M3 ISUZU waste compactor truck for sale
Basic Information
Vehicle name	Garbage truck	Chassis：		ISUZU
Outline size(L×W×H) (mm)	650021502600	Cargo inline size(L×W×H)(mm)：		/
Rated load(kg)	/	Empty mass(Kg)：		4950
Total weight(kg)	7300	Emission standard		Euro 4
Engine Information
Model	4JB1CN	Type		Diesel engine
Power/displacement(KW/ML)	98HP/2771ML	Manufacture		ISUZU
Chassis Information
Wheelbase(mm)：	3360	Axle load(kg) F/R		2520/4610
Tire	7.00-16	Max speed (km/h)：		95
Front overhang(mm)	1010	Rear overhang(mm)		2090
Front track(mm)	1580	Rear track(mm)		1450
Approach angel(°)	24	Departure angle(°)		13
Steering	Power steering	Brake		Oil brake
Cabin	Straight head 1 rows 2 doors ,allowable 2 persons
Special function
Bucket capacity	5M3		Filling work cycle time (s)		15-20
Garbage container material:	Anti-corrosion Carbon steel		Thickness		5-6mm
Pressure plate material	High-tensile steel		Discharge plate material		Anti-corrosion carbon steel
Compression Ratio	3:1		Operation		Manual and electric control both available
Trade terms
Payment terms	30% by T/T in advance, 70% by T/T before delivery
MOQ	1
Package	Waxing before delivery

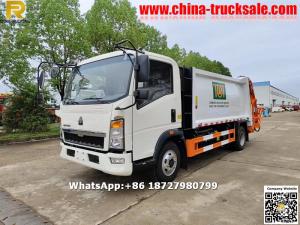

★★★★★Product Display :

★★★★★FAQ PARTS :

Q: How about Packaging?

A:In general , these trucks will be waxing before deliver to port ,and we can also package vehicles

according to your request.

Q: How about shipping ?

A:Big size trucks always shipping by RORO or bulk ship or flat bed container or open top container ,small type can shipping by container ,please contact us to get a shipping quotation.

Q:How about the warranty?

A: One year

Q: Do you have ISO certificate ?

A: Yes , we have ,please contact us to get our certifications.

Q: How about the delivery time ?

A: Most of our trucks are all have in stock ,we can delivery to you within 7 days ,if specially ordered ,we always need around 30 days for production.

Q: How about your product After-sales service system ?

A: Our main export country have accepted after-sales service, some of country used the third

department service.

Q: Do you accept Custom orders ? What's your MOQ order?

A: Yes,we do ,our MOQ is 1set.

Q: What's the payment terms ?

A: By T/T or L/C at sight.

Q: Which country do you have exported to ?

A: We have exported to many countries,such as Albania,Algeria,Angola,

Afghanistan, Congo,Cameroon,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,

Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Laos,Libya,Malaysia,Maldives,Mexico,

Morocco,Myanmar,Mongolia,New Zealand,Nigeria,Peru,Philippines,Qatar,Saudi Arabia,

Singapore,Sudan,South Sudan,Tanzania,Thailand,Togo, Tunisia,Venezuela,Zambia etc.
