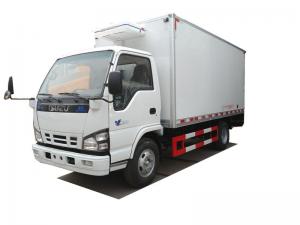

5TONS ISUZU refrigerator truck

Description

5TONS ISUZU refrigerator truck (also called 5TONS ISUZU refrigerator truck, refrigerator box truck, refrigerator wagon, freezer vehicle, temperature controlled truck, Freezer vehicle, Cold chain transport truck, Freezer cargo truck, Transport Freezer Van, Mobile Freezer van, Refrigerator van Truck, preservation vehicle)is used to carry perishable stuff at specific temperature, widely used to transport fish, meat, ice cream, fruit, vegetable and medicine, etc

The cooling device could be of famous brand such as Carrier,THERMO KING...

Optional Left hand drive or Right hand drive trucks

We use high quality van body for temperature reservation.The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that had super temperature preservation ability with varieties of thickness options.

★★★★★Product Parameter:

Name:	5TONS ISUZU refrigerator truck
Total weight(Kg)	7300
Rated weight(Kg)	5tons
Curb weight(Kg)	3500
Overall dimension(mm)	600021003200mm
Container dimensions (mm)	400018001800mm
Chassis model	QL1070DFZHC
Fuel type	Diesel engine
Emission standard	Euro 4/5
Engine model	4JB1CN
Manufacturer	ISUZU
Power/Displacement	98HP/2771ML
Rated person of Cab	2
Number of axles	2
Wheelbase(mm)	3300
Tires No.	6+1
Tyre size	7.00-16
Max. speed(Km/h)	95
Approach/Departure angle (°)	21/16
Front/Rear overhang (mm)	1120/1650
Front/Rear track(mm)	1550/1450
Detailed Configuration:	1. -15°C good refrigerator units ,You can also choose the specific brand (such as THERMO KING, CARRIER,etc) 2. 1000mm thickness Glass fiber reinforced plastics and polyurethane elastomer container body, thermal insulation effect is very good. 3. Equipped with rear door . We are professional to do the refrigerator trucks, absolutely guarantee the quality of products and the effect of cold storage .
Optional configuration :	1.Optional sigle side door and double side door 2.Hydraulic tail lifting platform, it will make it easier for you to load the goods(see the picture 5)

★★★★★Product Display:

★★★★★FAQ PARTS :
Q: How about Packaging?
A:In general , these trucks will be waxing before deliver to port ,and we can also package vehicles
according to your request.
Q: How about shipping ?
A:Big size trucks always shipping by RORO or bulk ship or flat bed container or open top container ,small type can shipping by container ,please contact us to get a shipping quotation.
Q:How about the warranty?
A: One year
Q: Do you have ISO certificate ?
A: Yes , we have ,please contact us to get our certifications.
Q: How about the delivery time ?
A: Most of our trucks are all have in stock ,we can delivery to you within 7 days ,if specially ordered ,we always need around 30 days for production.
Q: How about your product After-sales service system ?
A: Our main export country have accepted after-sales service, some of country used the third
department service.
Q: Do you accept Custom orders ? What's your MOQ order?
A: Yes,we do ,our MOQ is 1set.
Q: What's the payment terms ?
A: By T/T or L/C at sight.
Q: Which country do you have exported to ?
A: We have exported to many countries,such as Albania,Algeria,Angola,
Afghanistan, Congo,Cameroon,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,
Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Laos,Libya,Malaysia,Maldives,Mexico,
Morocco,Myanmar,Mongolia,New Zealand,Nigeria,Peru,Philippines,Qatar,Saudi Arabia,
Singapore,Sudan,,South Sudan,Tanzania,Thailand,Togo, Tunisia,Venezuela,Zambia etc.
